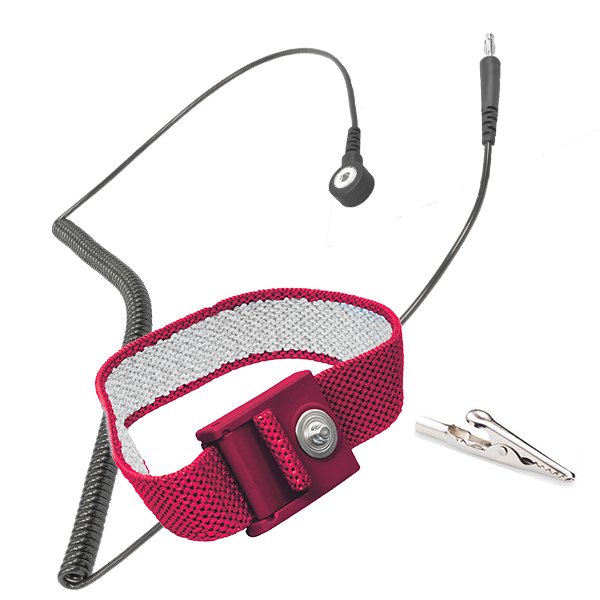

260 Series Anti Static Wrist Strap

Price range: $7.30 through $8.52

The 260 Series Anti Static Wrist Strap delivers continuous and reliable grounding for technicians handling sensitive electronics. Featuring a breathable elastic fabric band woven with highly conductive interior threading, it efficiently pulls static electricity away from your body. Its classic flat stainless steel backplate ensures a stable, low-profile fit against the skin for dependable all-day safety.

SKU: N/A Categories: ,

Product Details

The 260 Series Anti Static Wrist Strap delivers dependable Electrostatic Discharge (ESD) safety for technicians and assembly line personnel handling sensitive electronic components. Engineered for everyday reliability and structural simplicity, this adjustable wrist strap continuously and safely channels static electricity away from your body to ground.

Key Features

  • Reliable Static Capture: The elastic fabric band is woven with highly conductive threading on the interior surface, ensuring it captures and channels static electrons directly from your body.

  • Flat Backplate Design: Features a classic flat stainless steel backplate that provides a secure, consistent contact area against the skin while remaining low-profile and comfortable.

  • Standard Snapped Connection: Built with a durable 4mm stud snap directly on the wristband, providing a universal and secure connection point for standard grounding coil cords.

  • Fully Adjustable & Comfortable: The breathable, elastic fabric easily adjusts to accommodate a wide variety of wrist sizes, providing a snug fit for all-day wear without cutting off circulation.

Pro Tip for Optimal Performance: For maximum ESD protection, ensure that the wristband has direct contact with the skin. Do not allow clothing, such as an ESD smock sleeve, to get between the strap and your wrist.

Product Specifications

DimensionQuality
FabricPolyester with Hypoallergenic Silver-Suffused Nylon
Thread Resistance100 ohms (typical) 160 ohms (maximum)
Ground Contact360 degrees around Wrist
ColorBurgundy
Wrist Strap Snap4mm Stud Snap
Snap Release1-5 lbs of Pressure
Wrist Strap Back PlateFlat, Steel
Cord Length6 foot and 12 foot options
Cord MaterialPolished Polyurethane Coil Insulation
Cord Snap Type4mm Socket Snap
Cord Plug TypeSwivel Type Plug with 6 leaves for Banana Jack
Cord Plug AlternativeAlligator Clip slides over Plug for Banana Jack
Cord Resistor1 Meg Ohm Resistor Built Inside
Cord Diameter2.5mm
Cord Flex Life50,000 Flexes

Coil Cord

On the outside, the cord is made of polished polyurethane (PU) that is static dissipative.

On the inside, the encapsulated 1 meg ohm resistor ensures that electrons are transferred through the cord to ground at a static dissipative rate.

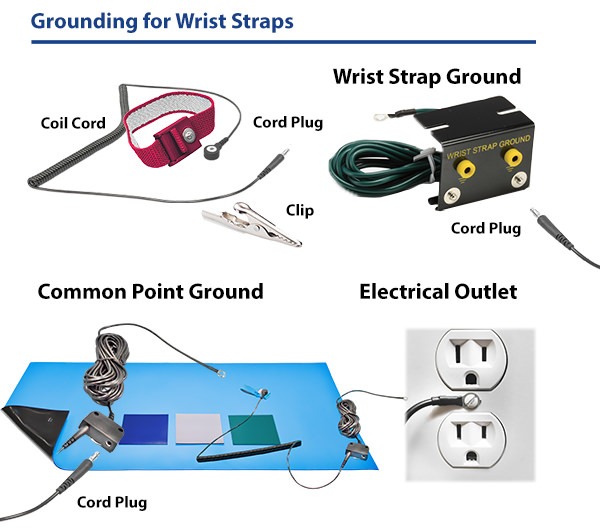

Static electrons collected off your body by the wrist strap are transferred to ground by attaching the coil cord to grounding:

a wrist strap ground, or a common point ground.

Alternatively, you can clip the coil cord to a metal railing with the included alligator clip (which slides over the plug).

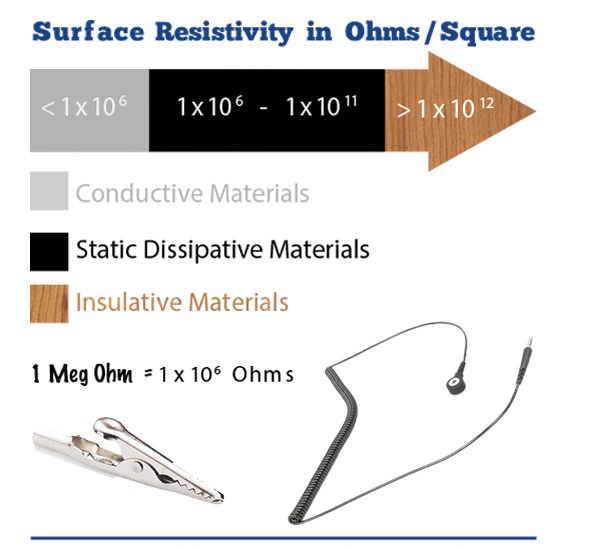

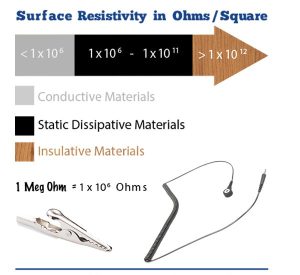

1 Meg Ohm Resistor

A 1 Meg Ohm Resistor is built into the coil cord to slow down an electrostatic discharge event (ESD) from a highly charged ungrounded surface from discharging instantaneously through the coil cord.

Typically a 1 Meg Ohm Resistor slows down an electrostatic discharge (ESD) a few more milliseconds than if it were not present.
