Aerostat® PC 2 Compact Ionizing Blower
The Aerostat PC 2 is a compact, high-performance ionizing blower designed to provide localized static control in demanding electronics assembly and testing environments. Engineered for versatility, the PC 2 offers excellent discharge time performance while maintaining a small enough footprint to fit into the most congested workstations.
Precision Static Protection
The Aerostat PC 2 Blower utilizes Simco-Ion’s advanced AC technology to deliver a balanced stream of ionized air (±10V). This ensures that sensitive components are protected from Electrostatic Discharge (ESD) during delicate manual assembly or high-speed automated testing.
Key Features
-
Compact Design: Slim profile saves valuable benchtop real estate without sacrificing neutralization power.
-
FMS Compatibility: Fully integrates with Simco-Ion’s Facility Monitoring System (FMS), allowing for remote status alerts and performance data logging.
-
Integrated Emitter Cleaner: Features a built-in manual emitter point cleaner to ensure consistent ionization and reduce long-term maintenance requirements.
-
Variable Airflow: Adjustable fan speed allows operators to balance the need for rapid discharge with the requirement for low-velocity air in sensitive component handling.
-
Bi-Color Status LED: Provides immediate visual feedback on the unit’s power and ionization status.
Built for the Modern EPA
The Aerostat PC 2 is optimized for use in ESD Protected Areas (EPA) where space and reliability are paramount. Its self-balancing circuitry eliminates the need for frequent manual calibration, making it a “set-and-forget” solution for process engineers.
Flexible Configuration Options
To meet specific site requirements, the PC 2 is available in four distinct builds:
-
Stand-Alone: Standard high-performance ionization.
-
Alarm: Includes an audible alarm for immediate fault notification.
-
Heater: Features an integrated heater for operator comfort.
-
Combined: Includes both the heater and the audible alarm systems.
Design Tip: The PC 2 is particularly effective when used in tandem with the Aerostat XC 2 for facilities that require a mix of wide-area and localized point-of-use protection.
Technical Specifications
The Aerostat PC 2 is engineered for high-performance static discharge in a localized, space-saving form factor. Below are the detailed operational parameters for the PC 2 series.
| Dimension | Specification |
| Input Voltage | 120 VAC, 60 Hz; 2.0A, 250W, fuse 2.5A 250V Slo-Blo |

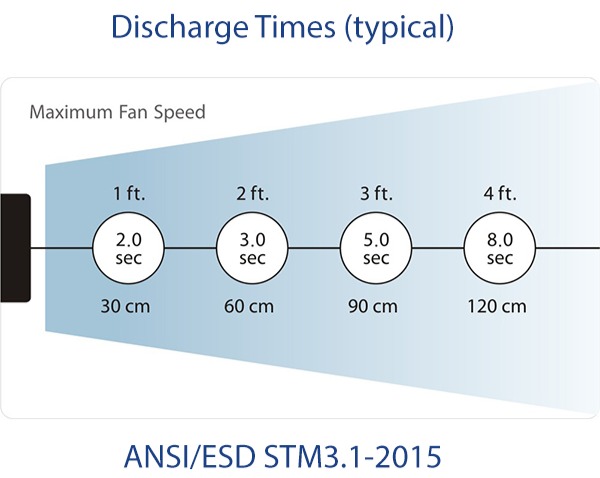

| Discharge Time | 2 seconds @ 1 Foot (30 cm); fan high (1000v to 100v) |
| Balance | ±10V |
| Coverage | 1 foot (W) x 4 foot (L) (30 x 122 cm) area |
| Ion Emission | Micropulse AC Ionizaton |
| Emitters | Stainless Steel |
| Controls | Power ON/OFF, FAN SPEED control LOW/MEDIUM/HIGH |
| Indicators | Green POWER on, red FAN alarm, red FAULT alarm LEDs |
| Audible Alarm | Fault and Fan stall (optional) |
| FMS Connector | RJ-9 4P/4C receptacle, relay contact rated +/- 24 VDC @ 0.2A max |
| Air Volume | 129 cfm (high fan speed) |
| Air Velocity | 370 fpm @ 12 inches; 240 fpm @ 24 inches; 120 fpm @ 48 inches (high fan) |
| Audible Noise | 61 dB (low fan speed); 64 dB (high fan speed) measured 2 feet in front of blower |
| Ozone | <0.05 ppm measured @ 1 foot (305 mm) in front of blower |
| Operating Environment | Temperature 50-95 Fahrenheit (10-35 Celsius); humidity 30-60% RH, non-condensing |
| Mounting Stand | Powder-coated aluminum with skid-resistant rubber feet. |
| Enclosure | Powder-coated aluminum |
| Air Filter | 30 ppi open cell foam filter with bracket (optional) |
| Dimensions | 9.1 inches (H), 6.8 inches (W), 3.3 inches (D) with stand; (23.1H x 17.3W x 8.4D cm) with stand |
| Weight | 2.8 lbs (1.25 kg) with stand with skid-resistant rubber feet |
| Warranty | Two-year limited warranty |
Compliance & Quality
-
Emitter Points: Industrial-grade Stainless Steel.
-
Warranty: Two-year limited manufacturer warranty.
-
Optional Equipment: 30 ppi open-cell foam air filter with bracket.
Technical Note: The Aerostat PC 2 is optimized for point-of-use applications. For facilities requiring wider “curtain” coverage, consider the Aerostat XC 2 as a complementary overhead solution.
The Aerostat PC2 utilizes MicroPulse technology applied to an emitter system for optimal performance. MicroPulse technology reduces ion recombination at the emitter, thus increasing production efficiency and performance. Using this breakthrough technology, the Aerostat XC2 maintains long-term peak performance and balance stability for extended periods between cleanings.
The only maintenance required for the Aerostat XC2 is periodic cleaning of the emitter points using the easy, built-in push button. The cleaning mechanism slides over the emitter points, removing any debris and ensuring balanced, continuous ion output.
