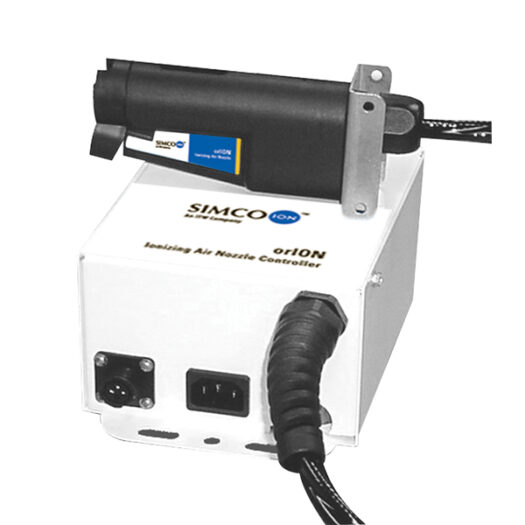

orION™ Air Nozzle

SKU: 4009045-01 Categories: , Tags: , , ,

$1,034.00

• Remotely operated using 7 foot cable
• Easily replaceable 0.01-micron particle filter positioned at the nozzle air exit

Specs

DimensionSpecification
Operating Voltage120 VAC, 60 Hz, 0.2A
Discharge<1 sec @ 2" distance; <2 sec @ 6" distance (input pressure between 10-100 psi)
Balance0V ± 15V
Power InletIEC 320
Input Pressure100 psi (690 kPa) max; Clean Dry Air, Nitrogen, or CO2
Gas Inlet1/4" NPT (female)
Gas Consumption2.4 scfm @ 30 psi (206 kPA); 4.6 scfm @ 60 psi (412 kPA); 7.4 sc fm @ 100 psi (690 kPA)
Air PressurePressure relief in nozzle complies with OSHA requirements
Filter0.01-micron rating
Audible Noise76 dB @ 30 psi (206 kPA0; 49 dB @ 60 psi (412 kPA); 97 dB @ 100 psi (690 kPA); measured 24" (600 mm) from nozzle)
Operating EnvironmentTemperature 32-104F (0-40C); humidity 30-70% RH, non-condensing
Ozone<0.5 ppm measured @ 1 foot
Connector4 position, keyed circular
WeightNozzle: 6.5 oz (185 g); cable: 1.25 oz/ft (115 g/m); controller: 6.0 lb (2.7 kg)
DimensionsController. 6.45" H x 5.240" W x 3.35" D; 164 x 132 x 85 mm) (does not include flanges)
WarrantyTwo year limited warranty
